MULTI-BLADE BLOCK CUTTER

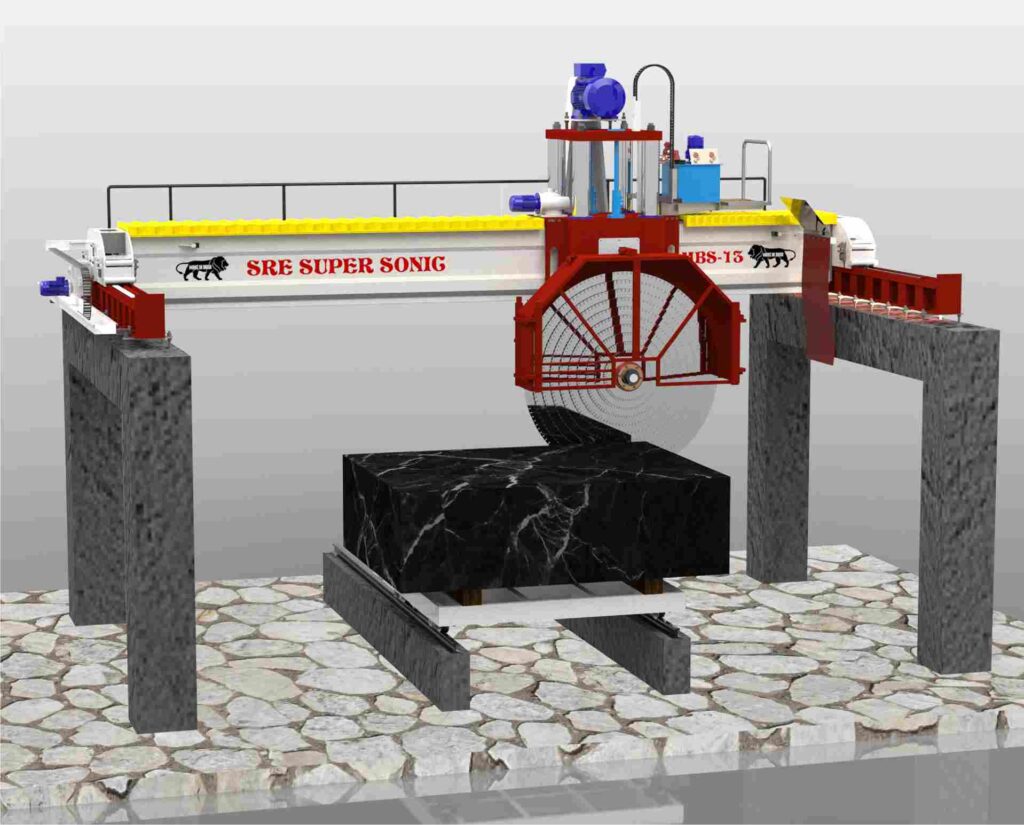

FABRICATION MODEL

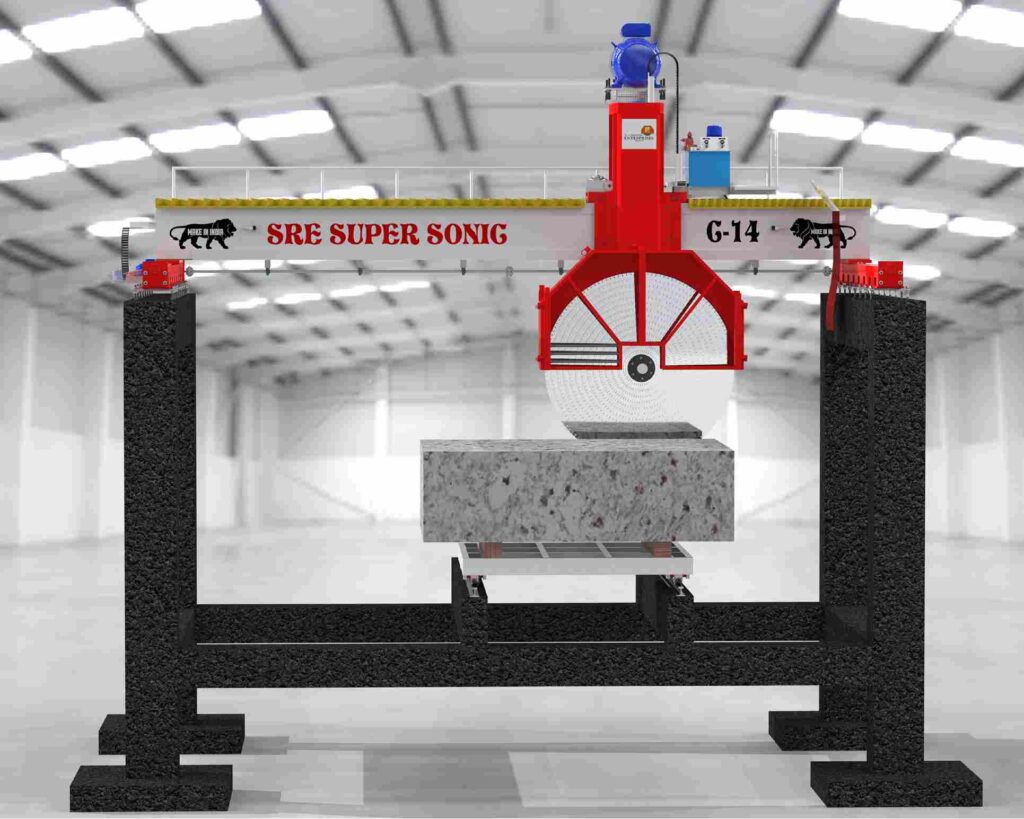

CASTING MODEL
MULTI BLADE BLOCK CUTTER PARTS
DUAL RMP HOUSING
LINEAR GUIDE

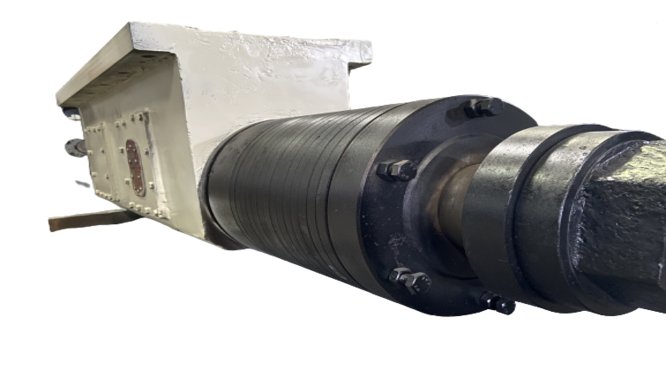

SINGLE RPM HOUSING
TURCITE

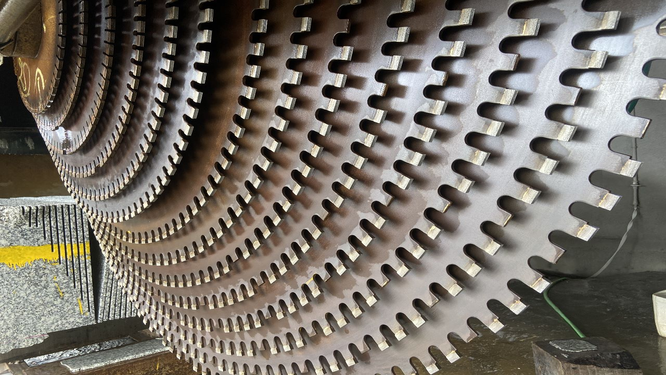

DUAL RPM BLADES
TECHNICAL SPECIFICATIONS
AVAILABLE IN 10 BLADE, 14 BLADE & 21 BLADE IN CASTING AND FABRICATION BOTH.
SPECIAL DESIGNED GEAR HOUSING INSTALLED TO HANDLE 10/14/21 BLADES.
LINEAR BEARING INSTALLED FOR ACCURATE& SMOOTH FUNCTIONING IN FABRICATION MULTI.
“V” TYPE SLIDE WITH TURCITE MOUNTING FOR FRICTIONLESS MOVEMENT & REDUCING WEAR & TEAR IN CASTING MULTI.
WE USE DIFFERENT TYPES OF SENSORS (PROXIMITY, ENCODER, LIMIT SWITCH) OF TOP MOST BRAND WITH PROPER PLC PROGRAMMING TO GET BEST CONTROL OVER MACHINE.
LESS POWER CONSUMPTION HIGHER PRODUCTION.
BETTER TOOL SEGMENT LIFE.
SPECIFICATIONS | DESCRIPTION |
MAIN MOTOR | 75 HP / 120 HP / 180 HP |
NO. OF BLADES | 10 / 14 / 21 |
BEAM | CASTING / FABRICATION |
BLADE DIA. | 2000 MM TO 3000 MM |
BLOCK LENGTH | 3500 MM |
BLOCK HEIGHT | 900 MM TO 1100 MM |
BLOCK WIDTH | UPTO 3000 MM |
GEAR HOUSING | SINGLE / DUAL RPM |
BLADE ENTRY FOR SLAB CUTTING | TOP ENTRY / SIDE ENTRY |
VERTICAL MOVEMENT | HYDRAULIC |
