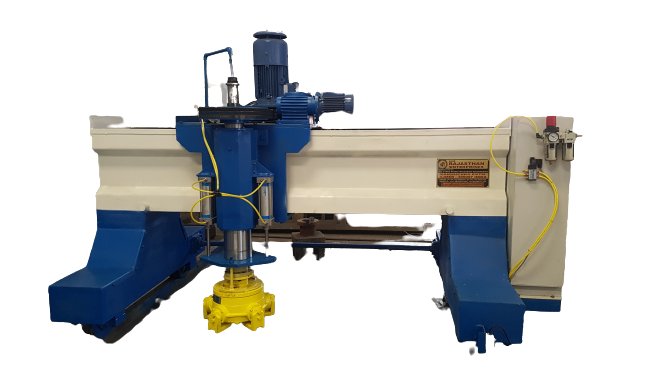

SINGLE HEAD AND DOUBLE HEAD POLISHING MACHINE
SINGLE HEAD POLISHING MACHINE
DOUBLE HEAD POLISHING MACHINE
TECHNICAL SPECIFICATIONS
SPECIFICATION | SINGLE HEAD APM 1300/1600 | DOUBLE HEAD APM 1300/160 |
TOTAL INSTALLED POWER | 10 H.P. / 14 H.P. | 21 H.P. / 26 H.P. |
LINEAR BEARING (LM GUIDE) | OPTIONAL | OPTIONAL |
LENGTH OF POLISH STONE (MM) | 4000 MM | 4000 MM |
WIDTH OF POLISH STONE (MM) | 1300 - 1600 MM | 1300 - 160 MM |
THICKNESS OF POLISH STONE (MM) | 15 - 50 MM | 15 - 50 MM |
HEAD | 4 BRICK / 6 BRICK | 4 BRICK / 6 BRICK |
